5.7 inch IPS LCD Display Screen
Product Description
High-performance 5.7-inch IPS LCD display screen offering excellent visual clarity and wide viewing angles, suitable for various industrial and commercial applications.
Technical Specifications
| Specification |
Details |
| Number of pixels |
640 × 480 pixels |
| Active Area |
86.40 × 115.20mm |
| Module Outline |
100.3 × 127.1 × 3.58mm |
| Viewing Angle (CR>10) |
80/80/80/80 (Typ) |
| Display Mode |
Normally Black |
| NTSC |
60% (Typ) |
| Aspect Ratio |
4:3 |
| LCM Brightness |
250cd/m² (Typ)
500cd/m² (Typ)
800cd/m² (Typ)
1000cd/m² (Typ) |
| Interface |
RGB/LVDS/MIPI |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
Key Features
- High-quality IPS panel technology for superior color reproduction
- Multiple brightness options for different lighting conditions
- Wide operating temperature range for industrial applications
- Multiple interface options for flexible system integration
- Compact module design with slim profile
640x480 TFT IPS Display Module, RGB Interface TFT IPS Display Module, 5.7-Inch TFT IPS Display Module
About this item JT-5.7IPSTW
Discover the clarity and vibrancy of our 5.7-Inch TFT IPS Display Module, designed for superior visual performance in a compact form factor. This high-quality display module offers a crisp 640x480 resolution, ensuring sharp and detailed images that are perfect for a variety of applications, from industrial control panels to educational tools.
Key Features:
High Resolution: Enjoy clear and detailed visuals with a 640x480 pixel resolution, providing a sharp and vivid display experience.
Bright Display: With a standard brightness of 250 Nits, this display remains visible and clear even in well-lit environments, making it ideal for outdoor use or brightly lit indoor settings.
Wide Viewing Angle: The IPS technology ensures a wide viewing angle, allowing multiple users to view the screen from different angles without any significant loss in image quality.
Interface: Equipped with an RGB/LVDS/MIPI interface, this display module is easy to integrate with a variety of systems and controllers, offering flexibility and compatibility.
Durable Design: Built to last, this display module is designed to withstand the rigors of daily use, making it a reliable choice for long-term deployment.
Technical Specifications:
Display Size: 5.7 inches
Resolution: 640x480 pixels
Brightness: 250 Nits-1000 Nits
Interface: RGB/LVDS/MIPI
Viewing Angle: Wide-angle IPS technology 80/80/80/80
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Ideal Applications:
This 5.7-Inch TFT IPS Display Module is perfect for applications requiring a balance of high resolution, brightness, and durability. Whether you're looking to enhance the display capabilities of your industrial equipment, create an engaging educational setup, or develop a user-friendly interface for your latest project, this display module offers the performance and reliability you need.
Asolute Maximum Ratings
|
Item
|
Symbol
|
Min.
|
Max.
|
Unit
|
|
Supply Voltage Voltage
|
VCC
|
-0.3
|
3.3
|
V
|
|
Backlight Supply Voltage
|
VLED
|
-0.3
|
6.0
|
V
|
|
Operating temperature
|
Top
|
-20
|
70
|
℃
|
|
Storage temperature
|
Tst
|
-30
|
80
|
℃
|
Backlight Characteristics
| Item |
Symbol |
Typical Value |
| Supply voltage |
VLED |
5V |
| Supply Current |
IL |
300 - mA |
| Power Consumption |
PL |
1.5 - W |
| PWM Control Frequency |
FPDIM |
50K Hz |
| Backlight ON-OFF |
High |
VEN
|
1.4 VLED V |
| Low |
0 - 0.4 V |
| PWM Control Level |
High |
VPDIM
|
1.5 V |
| Low |
0 - 0.4 V |
| Uniformity |
ΔBp |
80% |
| Life Time |
time |
30K hours |

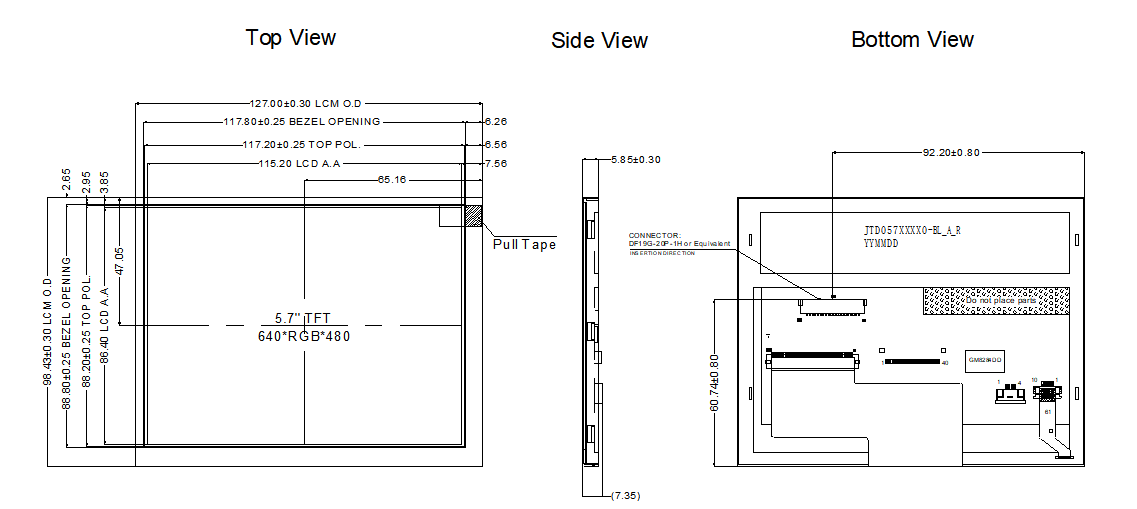

5.7" LCD Landscape, 5.7 inch MIPI/RGB/LVDS 640*480 TFT LCD Drawing
Why Choose Our Display Module?
Quality Assurance: Each module is tested for quality and performance to ensure you receive a product that meets the highest standards.
Customer Support: Our dedicated support team is ready to assist you with any questions or concerns, ensuring a smooth integration and operation of the display module.
Customization Options: Looking for specific customizations? Contact us to discuss how we can tailor this display module to fit your unique requirements.
Upgrade your visual display with our 5.7-Inch TFT IPS Display Module and experience the difference in quality and performance. Order now and take the first step towards enhancing your project with a reliable and high-performance display solution.
